Expanded capability, ultimate flexibility
Integrator with satellite-enabled beyond line of sight (SatCom BLOS) control extends range
up to 2,000 nmi (point-to-point), increasing safety, value, and effectiveness.
Multiple SatCom options available including Proliferated Low-Earth Orbit (PLEO)
and Geosynchronous Orbit (GEO) constellation control.
Also available with VTOL kit.
Unmatched Endurance
Fly over the hill and across the ocean to access previously unreachable targets by eliminating line-of-sight restrictions
Group 4/5 Capabilities
Fly multi-int, multi-domain missions that challenge Group 4/5 asset capabilities at a fraction of the acquisition and operation costs with 27.5-hour endurance, 2000 nmi range, and 50lb of payloads across 10 bays
Safer Operations
Keep operators and deployed personnel at safer distances from dangerous environments
Get the full specs and details.
Specifications
SATCOM C2 Options
- Proliferated Low-Earth Orbit (PLEO) constellations
- Medium-Earth Orbit (MEO)
- Geosynchronous Orbit (GEO)
Size and Weight
- Length: 8.2 ft / 2.5 m
- Wingspan: 15.7 ft / 4.8 m
- Max takeoff weight: 175 lb / 79 kg
- Payload Capacity: Up to 50lb / 23 kg
Performance
- Endurance: Up to 27.5 hours
- Ceiling: 20,000 ft / 6,096 m
- Max horizontal speed: 90+ knots / 46 m/s
- Cruise speed: 55 knots / 28 m/s
- Engine: High-efficient EFI using JP-5/Jp-8 (heavy) fuel
Sensors and Payload Options
- AC14 EO telescope (high-zoom day FMV)
- Dual Imager (MWIR/EO – day & night FMV)
- PT-6 AI-assisted maritime surface search
- NSP-5 SAR/MTI/CCD multi-int tactical radar
- WAMI Wide-area motion imagery for day (Redkite) and night (Blackkite)
- EOIR-5/Alticam 14 Laser designator/pointer/rangefinder
- Alternative Navigation (Alt-Nav)
- SIGINT, EW, comms relay, and more
- Kinetics
- Rapid integration of other customer-specific payloads available
- On-board connectivity: Ethernet
Range
Theater-Relevant Ranges

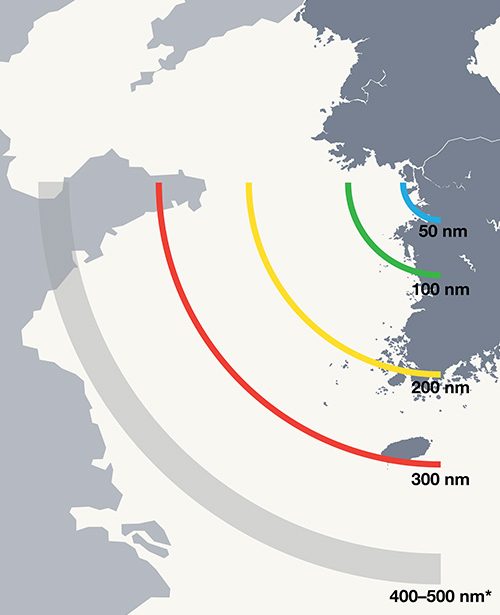

Achieves a range up to 2,000 nmi (point-to-point), long enough to fly from Guam to Okinawa. Up to 13 hours time on station at 500 nmi. Ideal for dispersed island chains, complex coastlines, vast areas of open ocean, and similar CONOPS.
Expanded Target Set

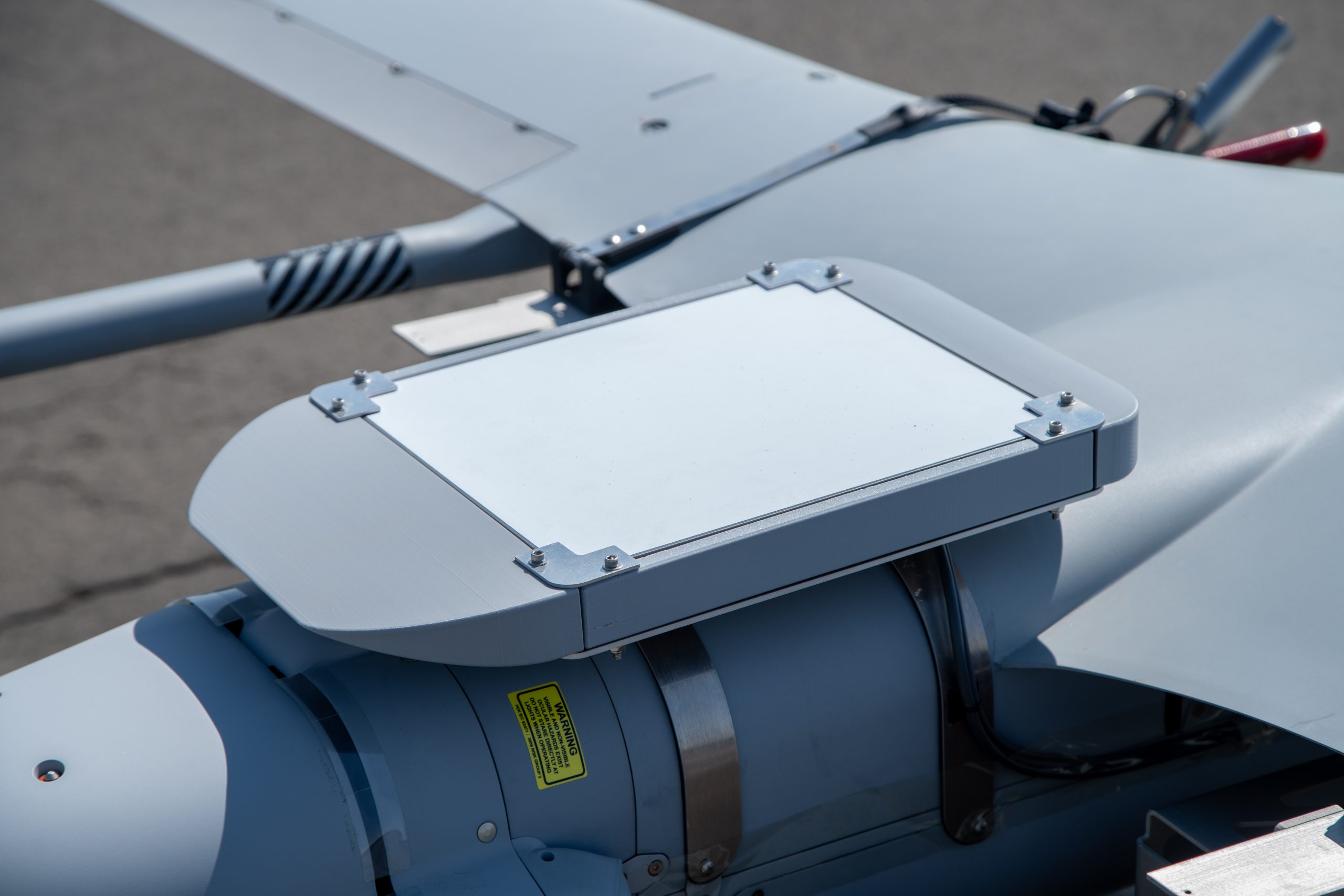

The field-swappable SatCom mission kit maximizes the full potential of Integrator’s endurance capability while expanding end user access to previously unreachable targets from geographically dispersed bases. Centralize control over assets launched anywhere in the world (including expeditionary positions via the optional VTOL kit). PLEO also allows control by advance forces in the field.
Advanced SatCom Options
Multiple SatCom control options including GEO, MEO, and Proliferated Low-Earth Orbit (PLEO) constellations offer ultimate flexibility and choice of control.
Secure and Reliable
Utilizes the latest global constellations of high throughput satellites and advanced onboard technology to achieve stable and high data rates with commercial and certified encryption options.
Multi-Mission Flexibility
Integrator’s suite of modular mission payloads (50lb across up to 10 bays) can now extend over the horizon to deliver persistent, high-resolution imagery, SIGINT, and electronic warfare capabilities for broad operational and strategic effects. Modular payloads are rapidly reconfigurable in austere environments.
Fewer Bases, Reduced Footprint

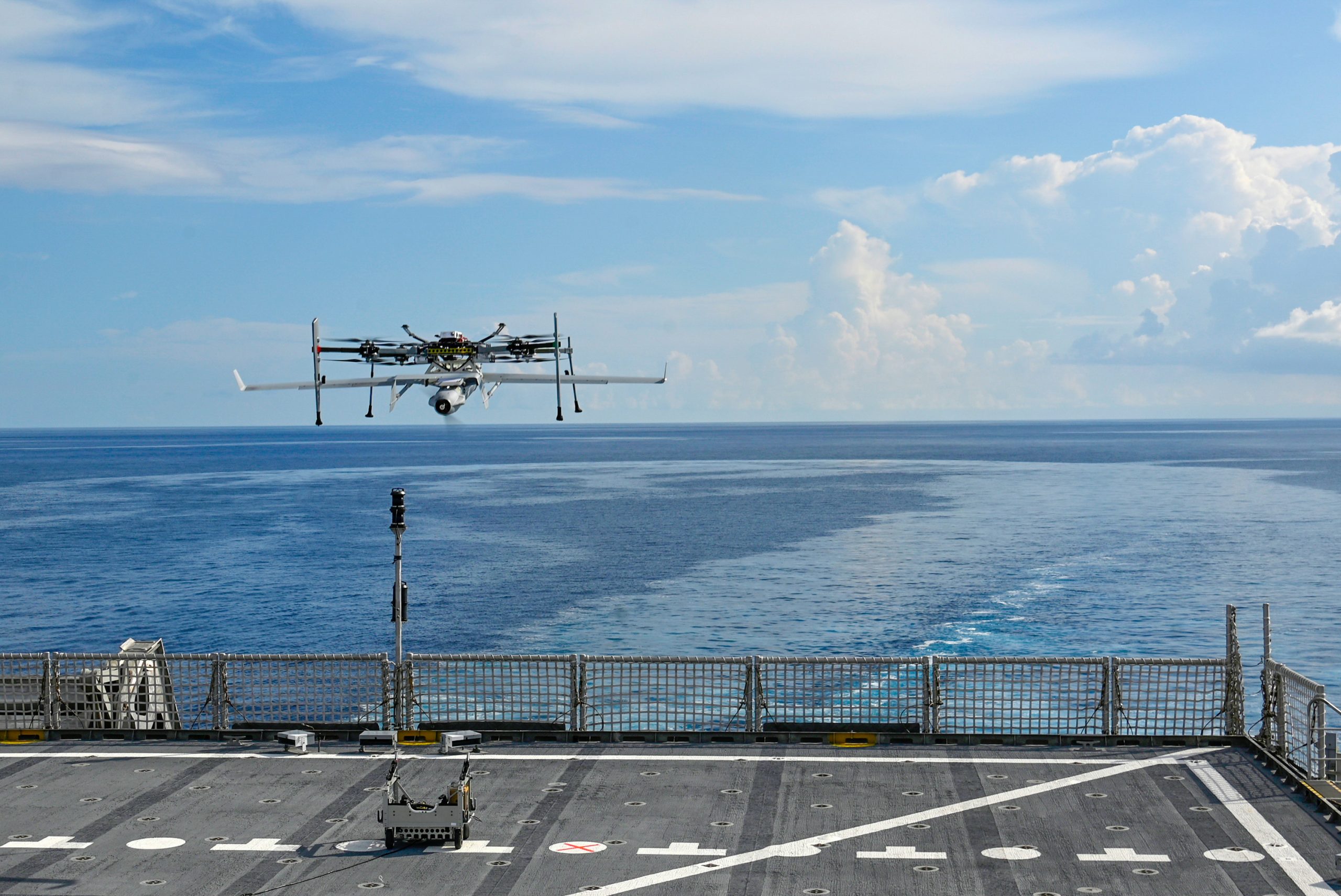

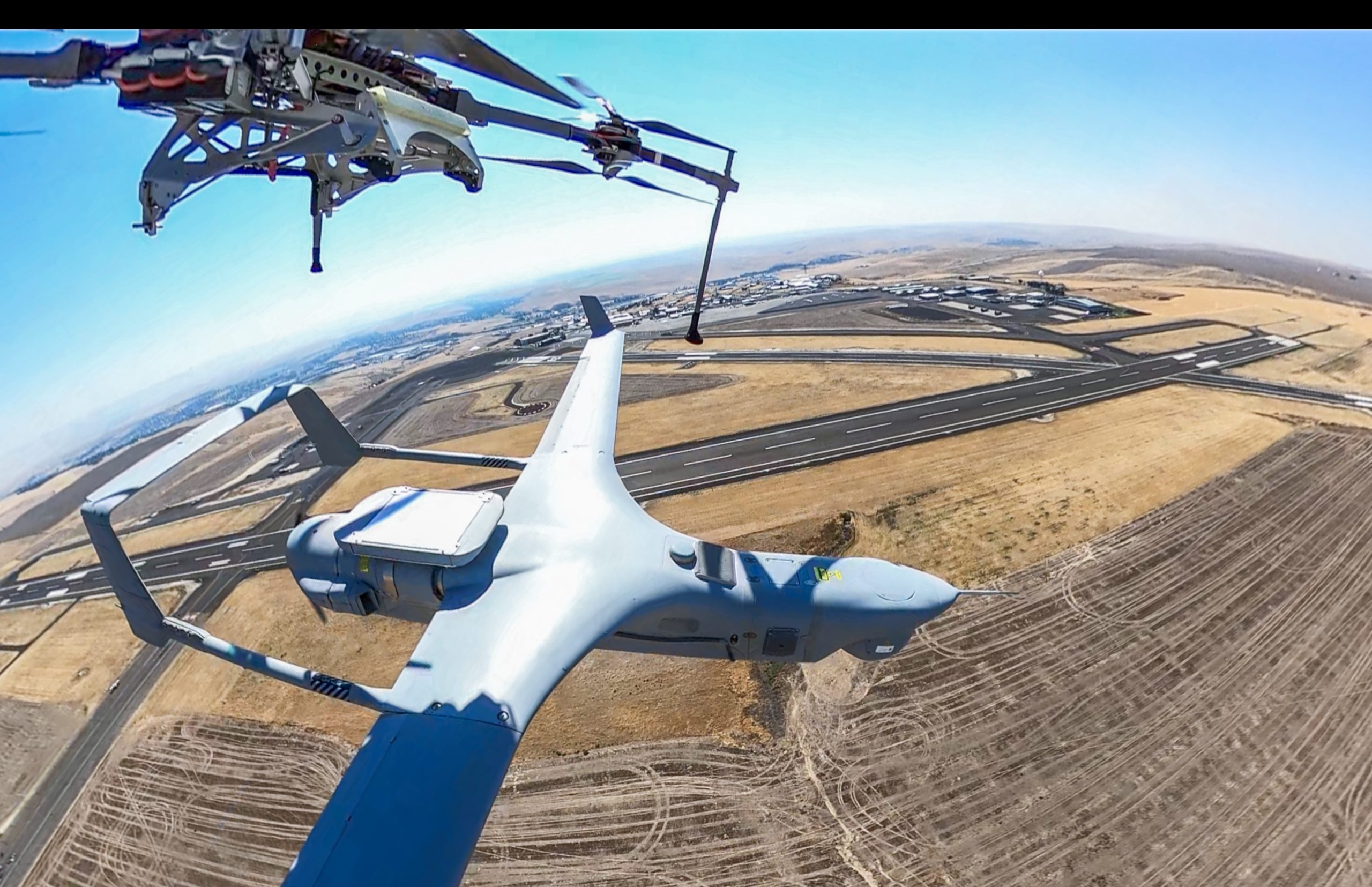

Reduce downrange footprint and centralize control of dispersed assets. No-sacrifice VTOL kit preserves endurance, range, and payload and power capacity. Expeditionary VTOL transportable downrange to enable island-hopping and ship-to-shore operations
Unparalleled ISR for Group 3 UAS
Integrator Extended Range delivers more affordable theater-level ISR on par with current Group 4 or 5 capabilities — with all the benefits and cost of a Group 3 UAS.
