Integrator VTOL
Integrator VTOL

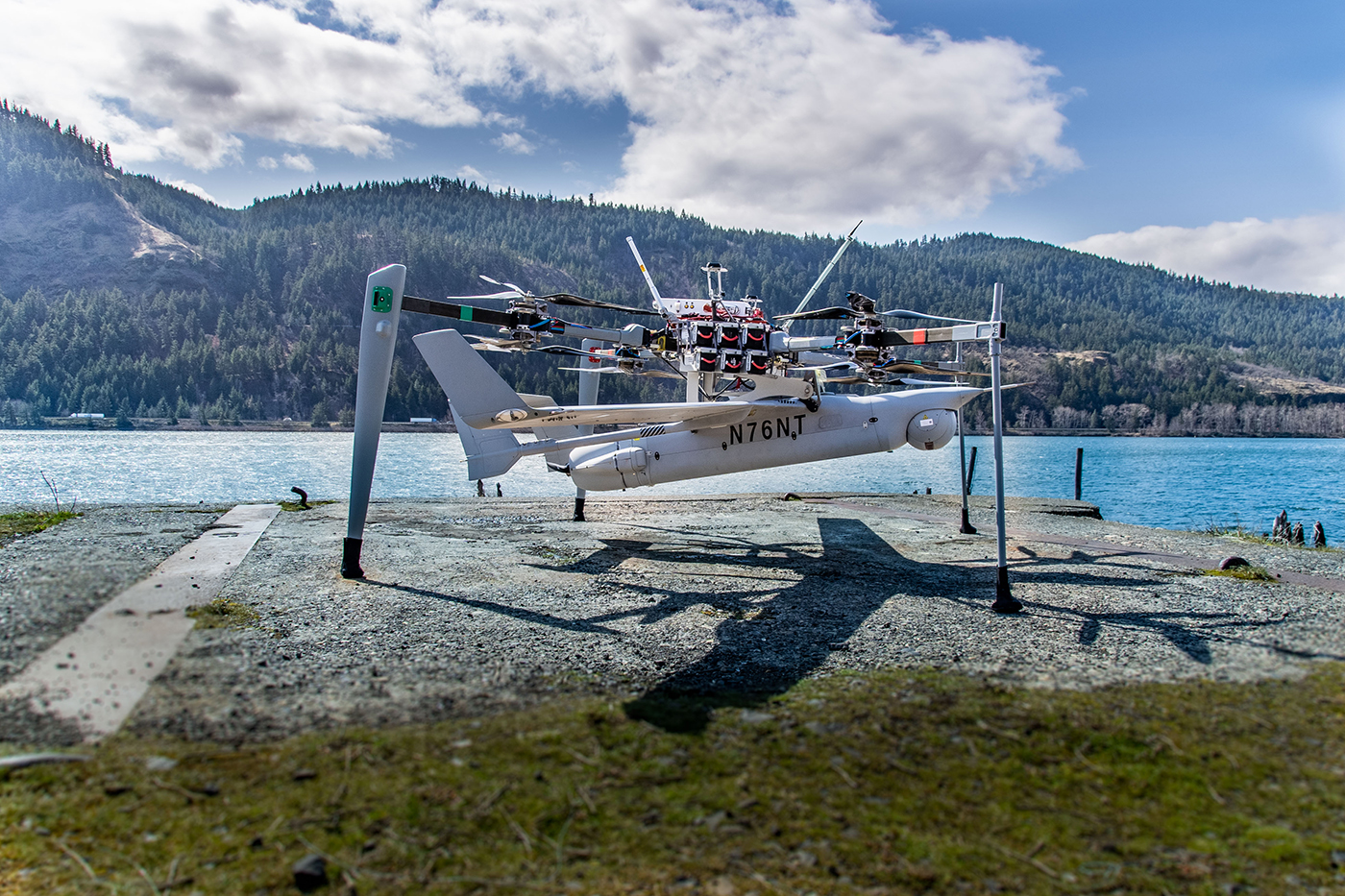

Battle-Tested Endurance, Now With VTOL

The long-endurance Integrator is the most versatile UAS in its class.
With our new VTOL kit, you don’t sacrifice endurance and capability for expeditionary.

Long-Endurance

Integrator’s 24+ hours of endurance (16+ hours with a full 40-pound payload complement), means you’ll never lose sight of what’s most important.

Small Footprint

FLARES Vertical Take-off and Landing kit requires minimal deck space, can launch in high seas and gusty winds, and requires zero aircraft modifications.

Customizable Payloads

Maximize every mission with six payload spaces and up to 40 pounds of cutting-edge sensors. Modularity supports a wide range of missions including electronic warfare, ISR, and comms relay

Get the full specs and details.

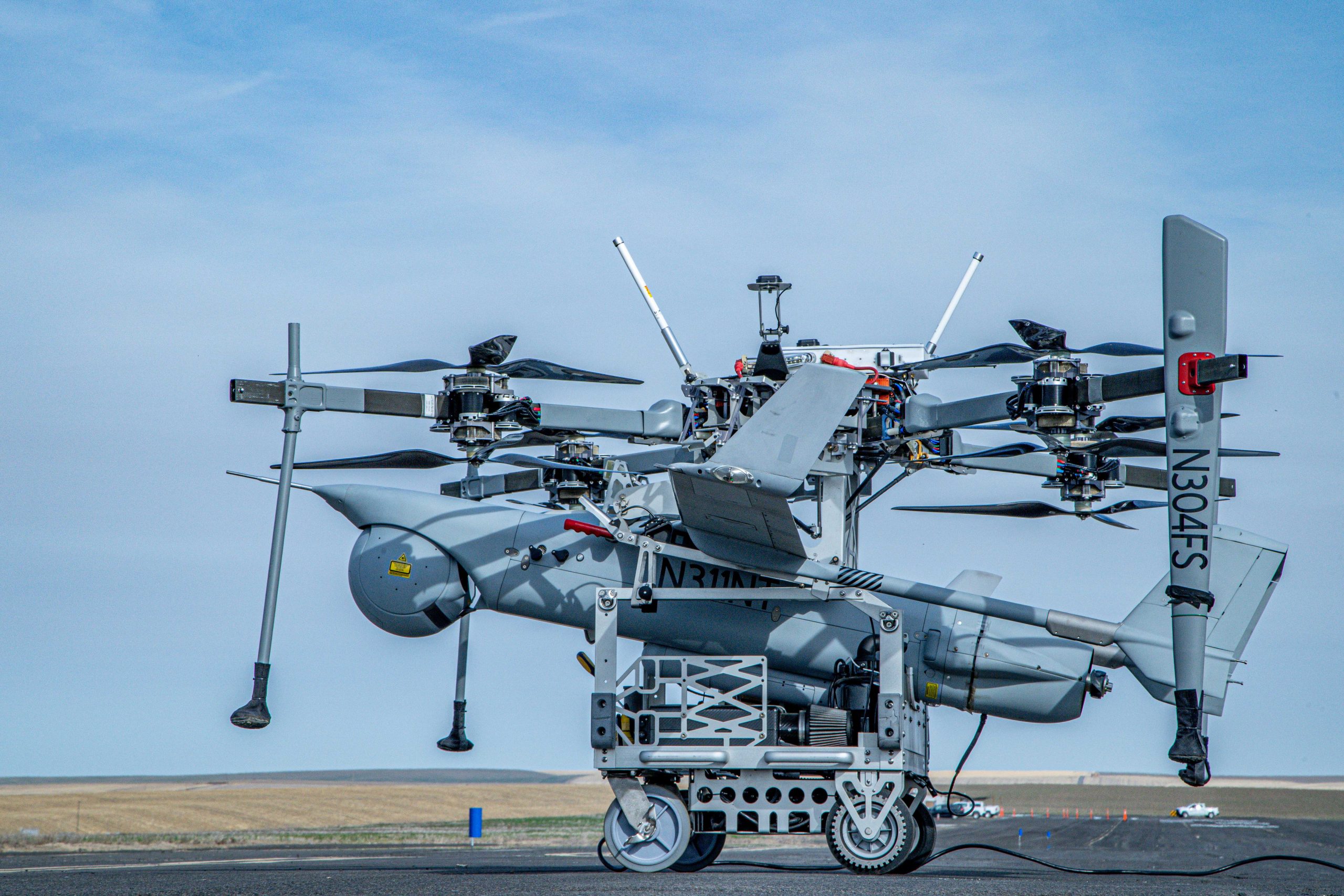

FLARES Specifications

Weight
  • Max Integrator weight 165 lb (75kg)
Temperature Range
  • -20º to +45º C
Wind Range
  • 0-30 knots
  • 10 knot gusts
Deck Motion
  • +/- 10 degrees roll
  • +/- 5 degrees pitch

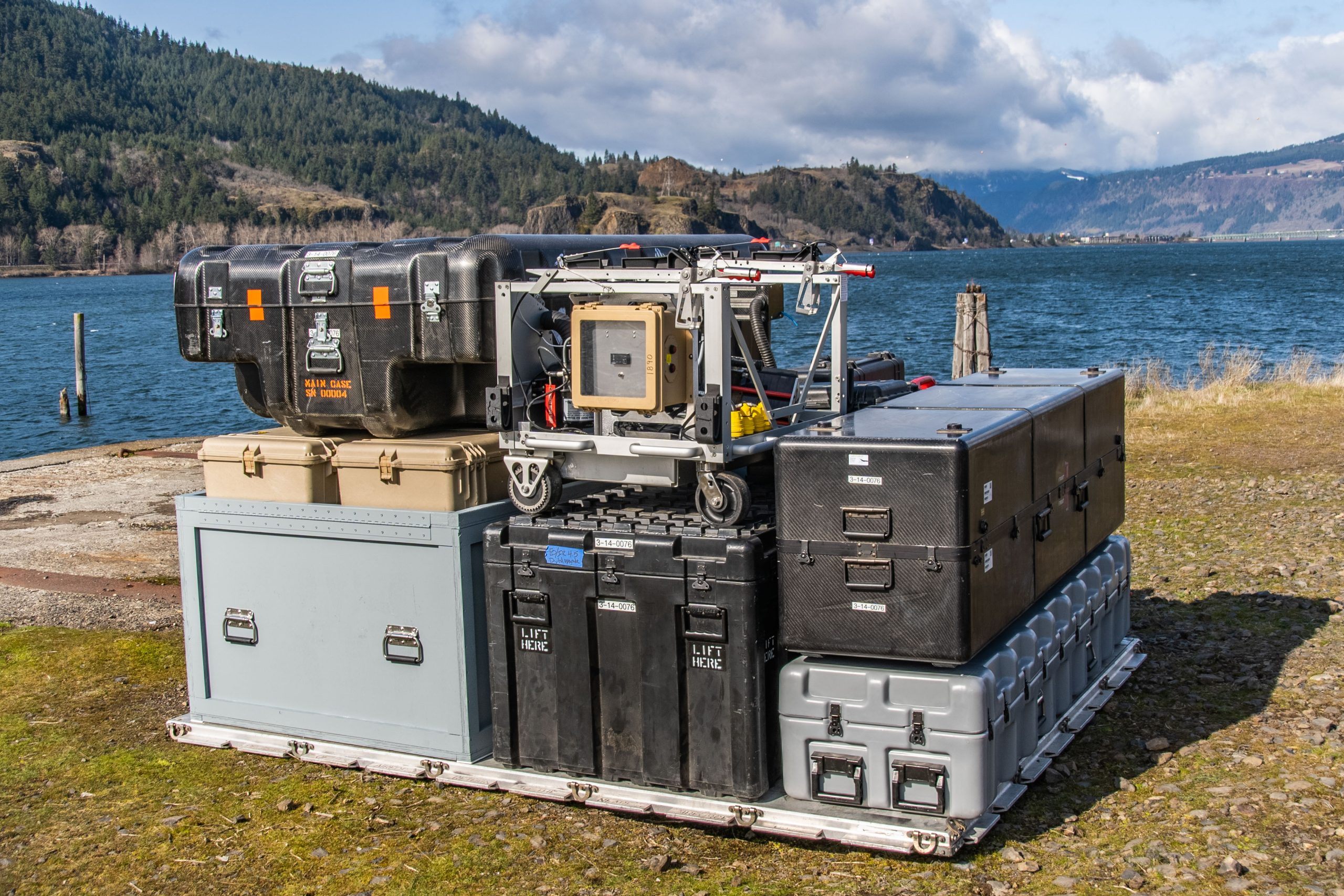

Full Mission Set Packout
  • 463L pallet: 108 x 88 x 62 in
    (2.74 x 2.24 x 1.57 m)

Integrator Specifications

Size and Weight
  • Length: 8.2 ft / 2.5m
  • Wingspan: 16 ft / 4.9 m
  • Max takeoff weight: 165 lb / 74.8 kg
  • Max payload weight: 40 lb / 18 kg
Sensor Options
Payload Integration
  • Onboard power: 350 W for payloads
  • Onboard connectivity: Ethernet
Performance
  • Endurance: 24 hours (16+ hours with full 40lb payload)
  • Ceiling: 19,500 ft / 5,944 m
  • Max horizontal speed: 90+ knots / 46 m/s
  • Engine: EFI using JP-5/JP-8 fuel

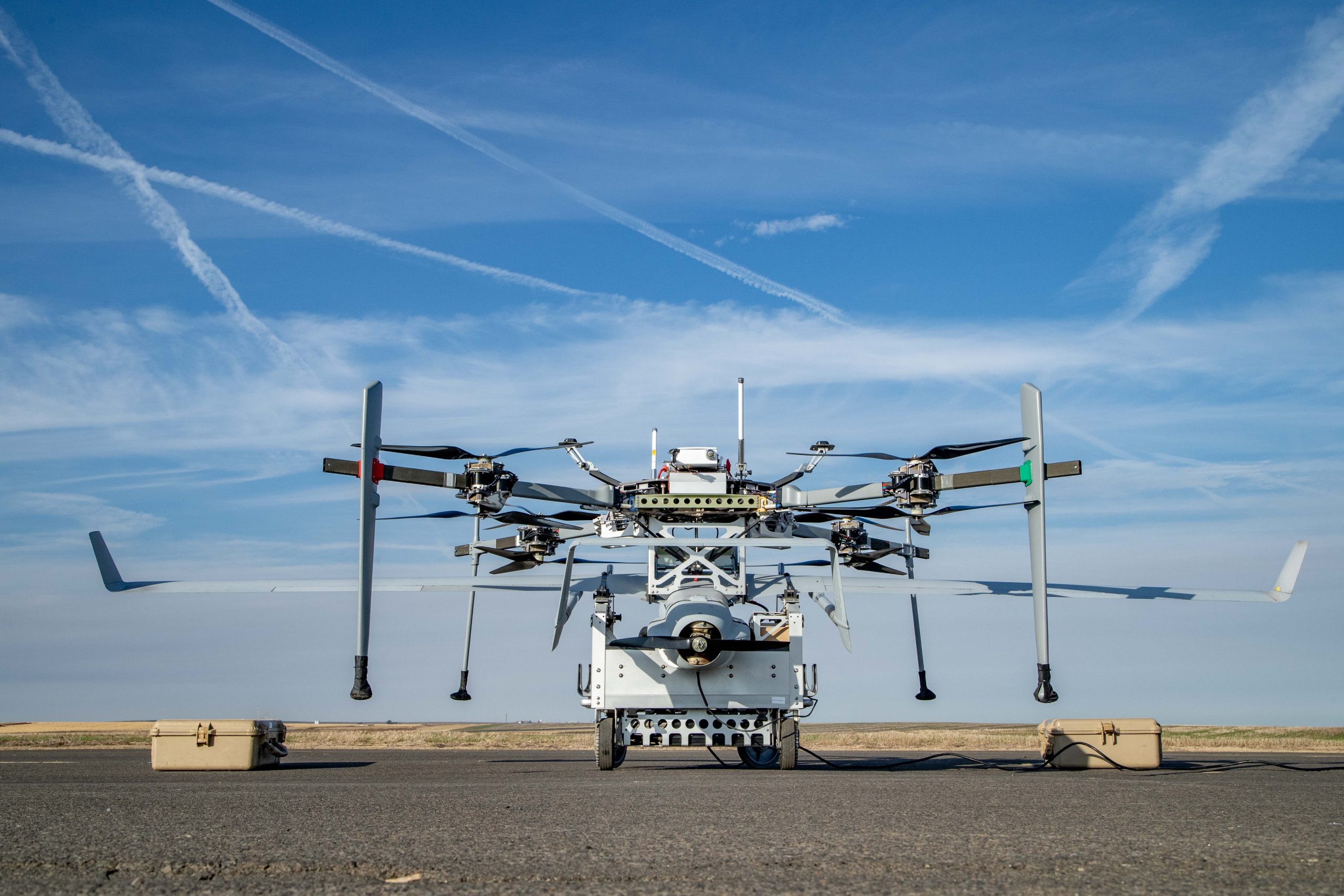

How does Integrator VTOL work?

LAUNCH

FLARES, mated with Integrator, climbs vertically to altitude (500′ AGL), dashes into the wind, and releases Integrator into fixed-wing flight.

  • FLARES returns to land/ship via GPS
  • In case of an aborted launch, FLARES returns and lands vertically with Integrator still attached.
RECOVERY

FLARES takes off vertically tethered, hosting capture rope into the air (~300′). Integrator catches on vertical line via wing hook (<5 min)

  • FLARES descends as the capture rope is wheeled onto the winch in MARS (Mast Augmented Recovery System) and Integrator settles onto the top of the mast.
  • Unloaded FLARES lands on deck.

Full Range, Endurance, and Capacity

Integrator VTOL offers over 16 hours of endurance carrying a full 40 pounds of Insitu’s best-in-class modular payloads. Up to 24 hours of endurance is available with less payload weight. Range and endurance enable persistent detection, classification, and tracking.

Increased Portability and Self-Sufficiency

Integrator VTOL enables rapid repositioning and operation in tight spaces on land or ship.

Optimized for Shipboard Operation

FLARES is built to operate in high seas and gusty winds, with limited launch and stowage spaces in mind. Launches from small vessel helicopter decks in high pitch and roll environments.

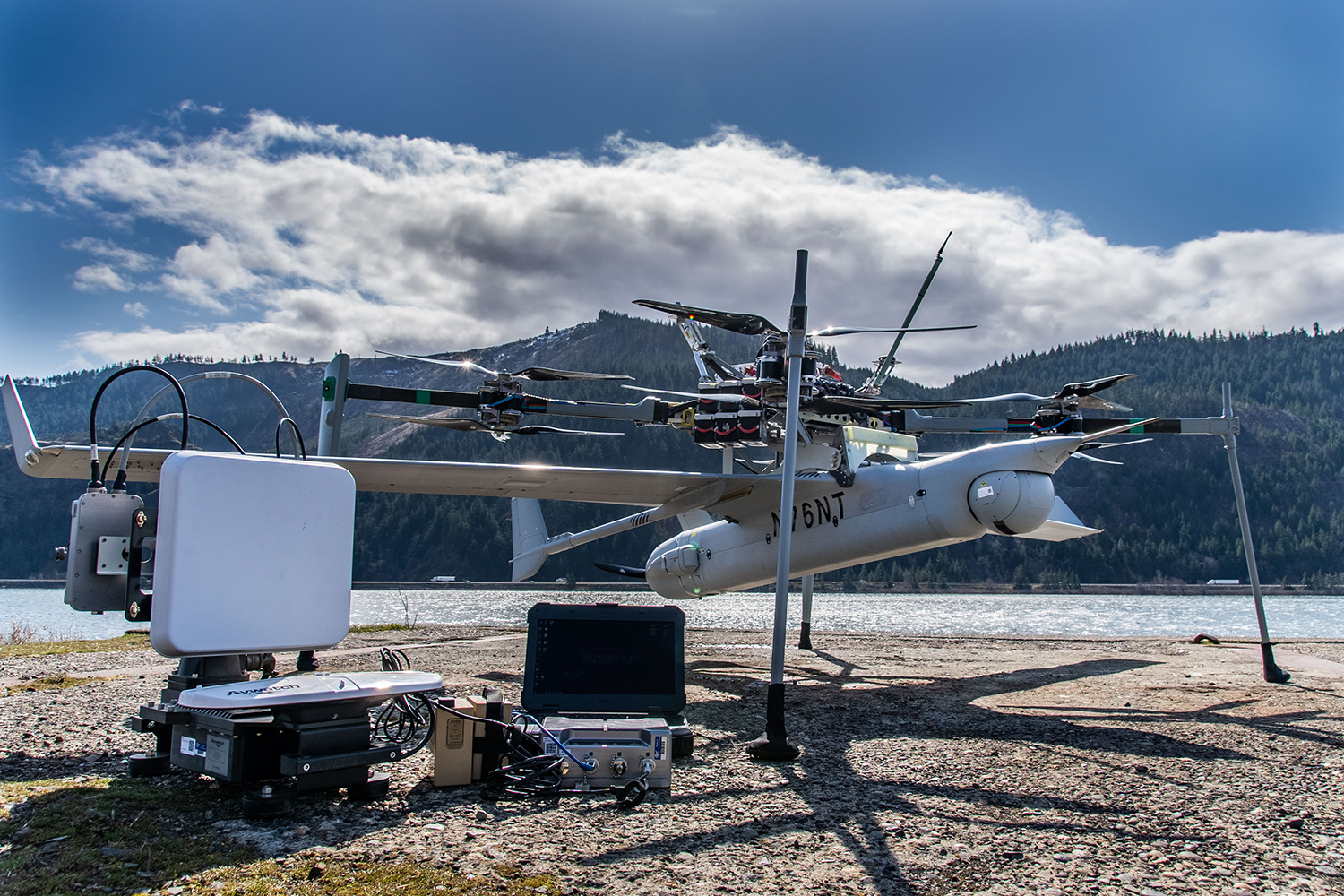

Common Ground Control Station

Small, modular, and expandable GCS with multiple configurations minimizes footprint and maximizes compatibility. Also controls non-Insitu UAV.

Trusted Performance

Integrator and its variants have been truly battle-tested and deployed around the globe, flying in the harshest environments for a variety of US and international partners.

Interoperability

Compliant with relevant NATO and industry standards to allow interoperability across joint, coalition, and allied forces.

Encrypted Communication

Encrypted command and control data link enables a line-of-sight operating radius beyond 50 nm / 92.6 km, with electromagnetic shielding to support customized communications and radio frequency sensor payloads.

Ready to learn more?

Related Systems

Operate Integrator with these configurable payloads.

Integrator

Increasing expeditionary capabilities with more payload options
Learn More

Alticam 14

Multi-Imager, Multi-Feed turret with MWIR, SWIR and EO
Learn More

EO950

Multi-Imager, Multi-Feed turret with EO/IR telescope and zoom
Learn More

Catalina

Power your media enterprise with Catalina server-side software – Insitu’s sophisticated multimedia server
Learn More
In the News

Related Stories

Insitu Announces its High Seas, Long Endurance Integrator VTOL Uncrewed Aircraft System at Navy League’s Sea-Air-Space Global Maritime Expo

Integrator VTOL launches vertically on ships or land without sacrificing payload capacity or endurance.

Read More »

Insitu Sets Company Record for Longest Flight at 25.5 hours with its Integrator Uncrewed Aircraft System

Insitu, A Boeing Company, recently set a company record for the longest duration flight with a 25.5-hour sortie with its Integrator Uncrewed Aircraft System (UAS) on an operational mission.

Read More »

Insitu Announces Kinetic Capability for the Integrator Uncrewed Aircraft System (UAS)

Insitu, A Boeing Company, announced a munitions program for its Integrator UAS, which adds a highly sought-after strike capability to the platform’s unmatched payload portfolio and class-leading 24-hour flight endurance.

Read More »
