ScanEagle
ScanEagle

The UAS that invented the agile ISR category

With over 1.2 million flight hours, ScanEagle is the industry’s most trusted long-endurance UAS.

Proven Experience

99 percent mission readiness rate (services) and best-in-class reliability

Flexibility

Runway-independent design easily operates from land or at sea

Secure Communications

Delivers stable, encrypted air-to-ground comms up to 55nm

Get the full specs and details.

Specifications

Size and Weight
  • Max takeoff weight: 58 lb / 26.5 kg
  • Max payload weight: 11 lb / 5 kg
  • Payload power: up to 150 W
  • Length: 5.6ft / 1.71m
  • Wingspan: 10.2 ft / 3.1 m
Sensor and Data Options

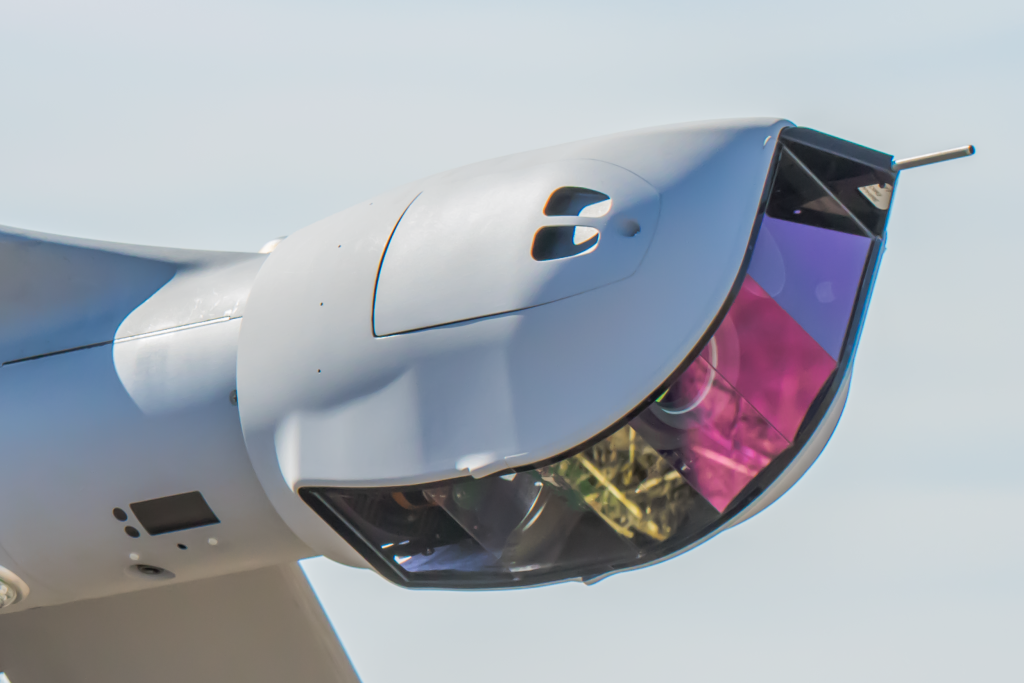

  • Turret: EO, EO950 (EO camera and EO telescope), MWIR, Dual Imager (EO and MWIR)
  • Video Datalink: Analog, digital encrypted
  • C2 Datalink: Encrypted, unencrypted
Performance
  • Endurance: 18 hours
  • Ceiling: 19,500 ft / 5,950 m
  • Max horizontal speed: 80 knots / 41.2 m/s
  • Engine: Heavy fuel (JP-5 or JP 8) or C-10 gasoline engine

Multiple Variants and Configurations Available

ScanEagle is currently available in Block E and Block F (ScanEagle 2) variants. Contact our team to learn more about what’s available with each.

Proven and Trusted

ScanEagle has been continuously deployed on land since 2004 and at sea since 2005, meeting the demanding mission requirements of international defense, government, and commercial customers.

Persistent ISR

ScanEagle provides persistent daytime and nighttime ISR in some of the world’s most extreme environments.

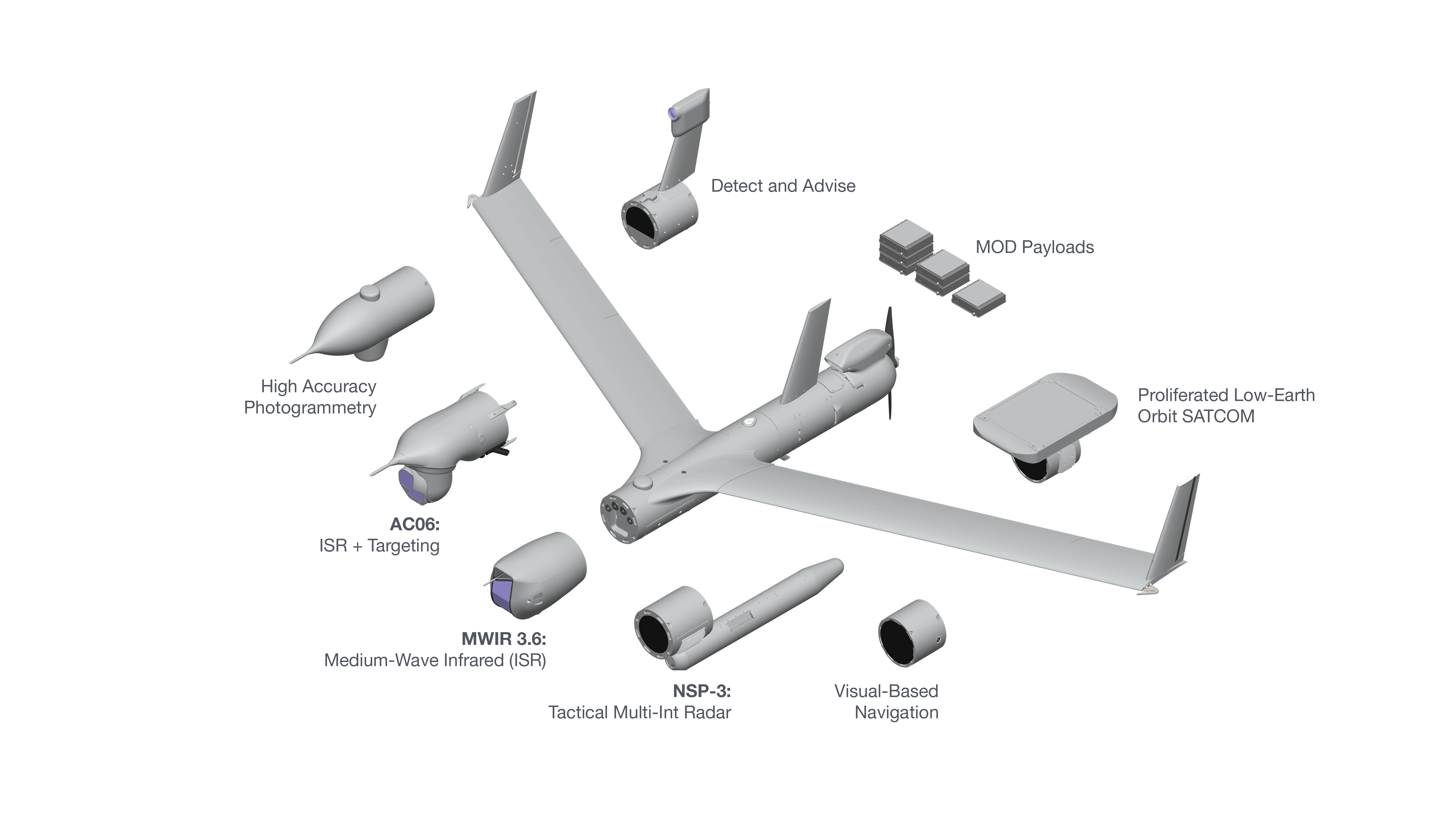

Payload Flexibility

Field-swappable payloads can be rapidly reconfigured to support a wide range of missions—electronic warfare, ISR, comms relay, overwatch and targeting.

Customizable

ScanEagle maximizes common architecture, reducing lifecycle and training costs. Our engineering and payload teams can custom-configure your aircraft to suit your mission

Ready to learn more?

  • FSR carrying ScanEagle

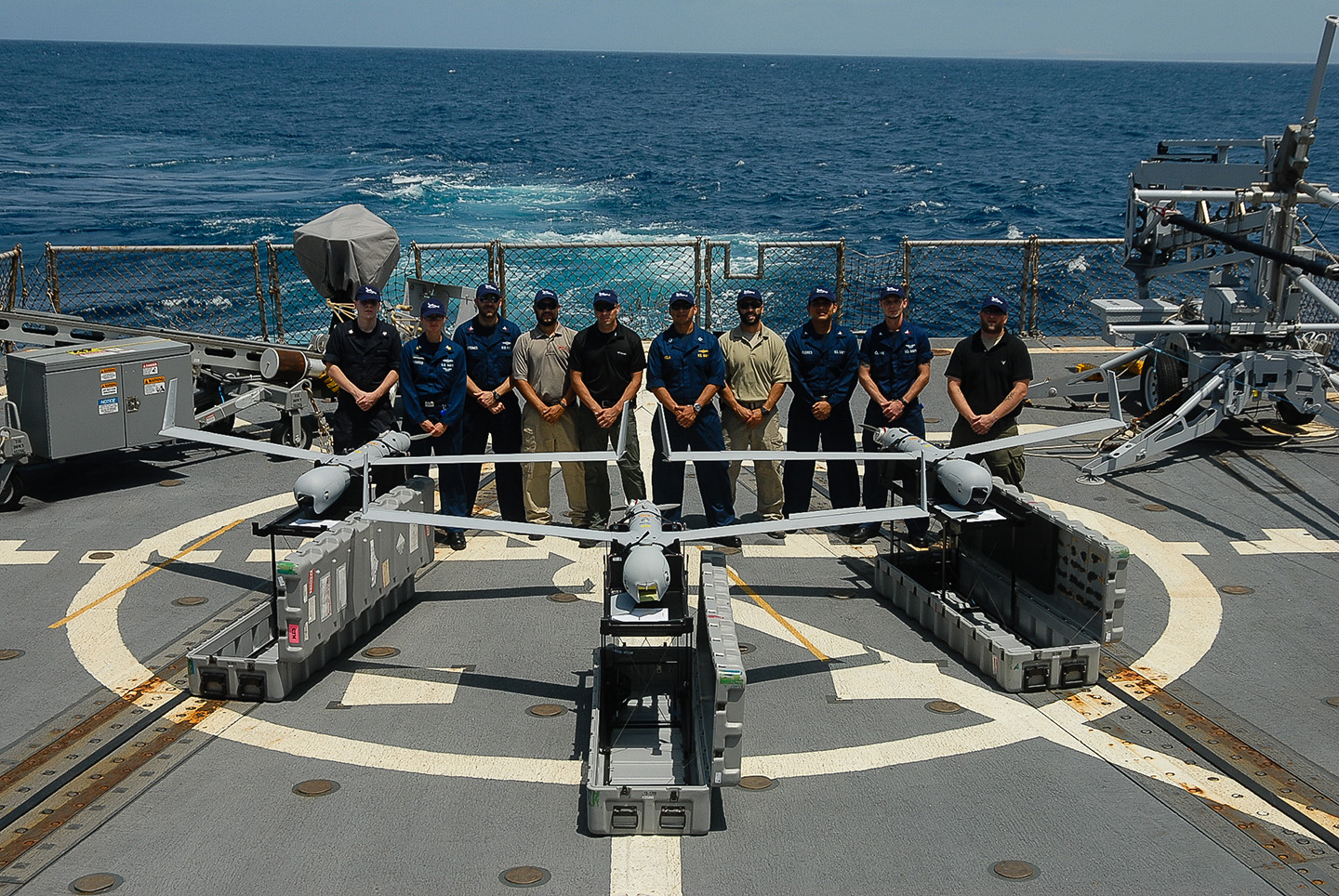

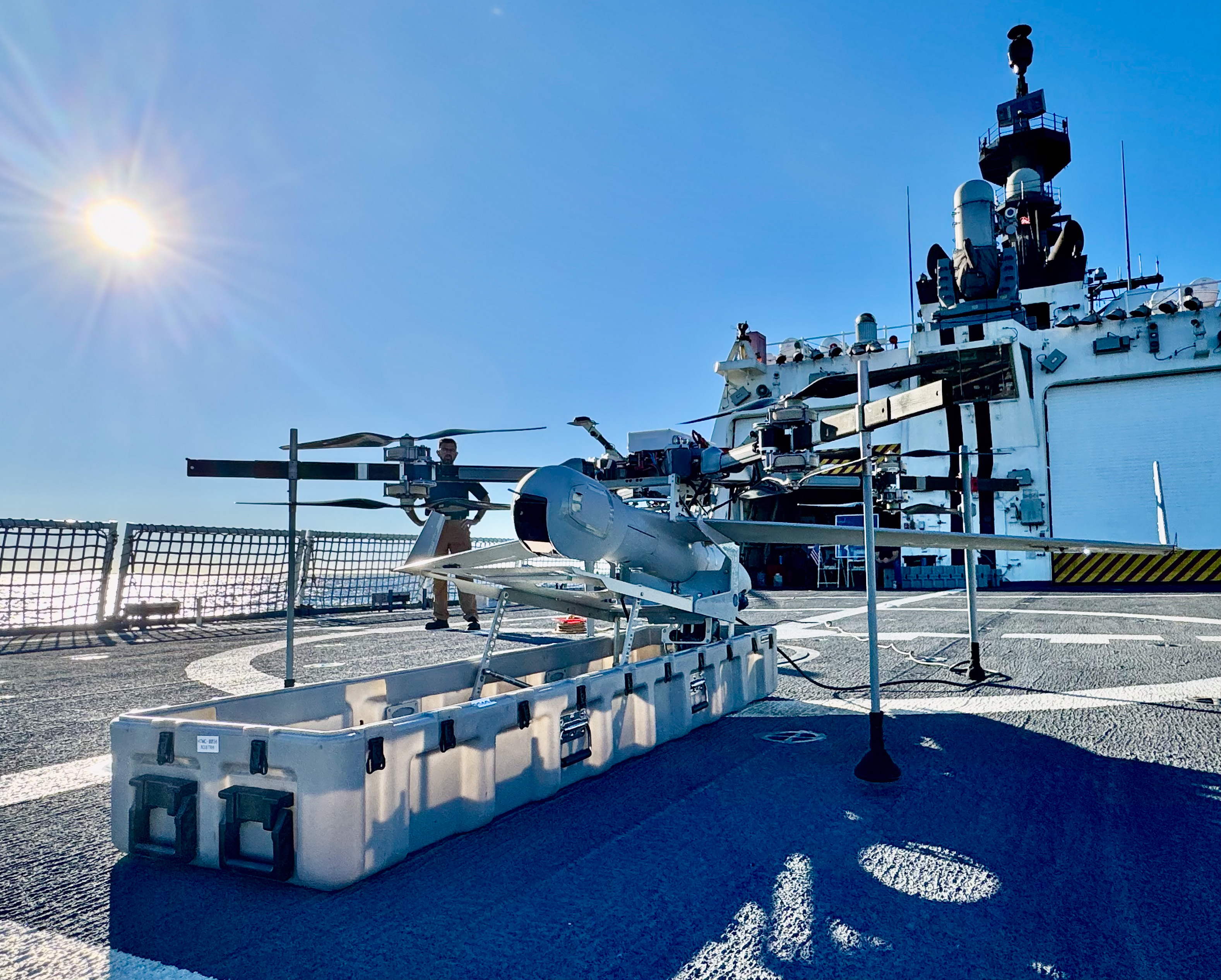

  • ScanEagle on a ship with crew
  • ScanEagle flying over a ship at sea.

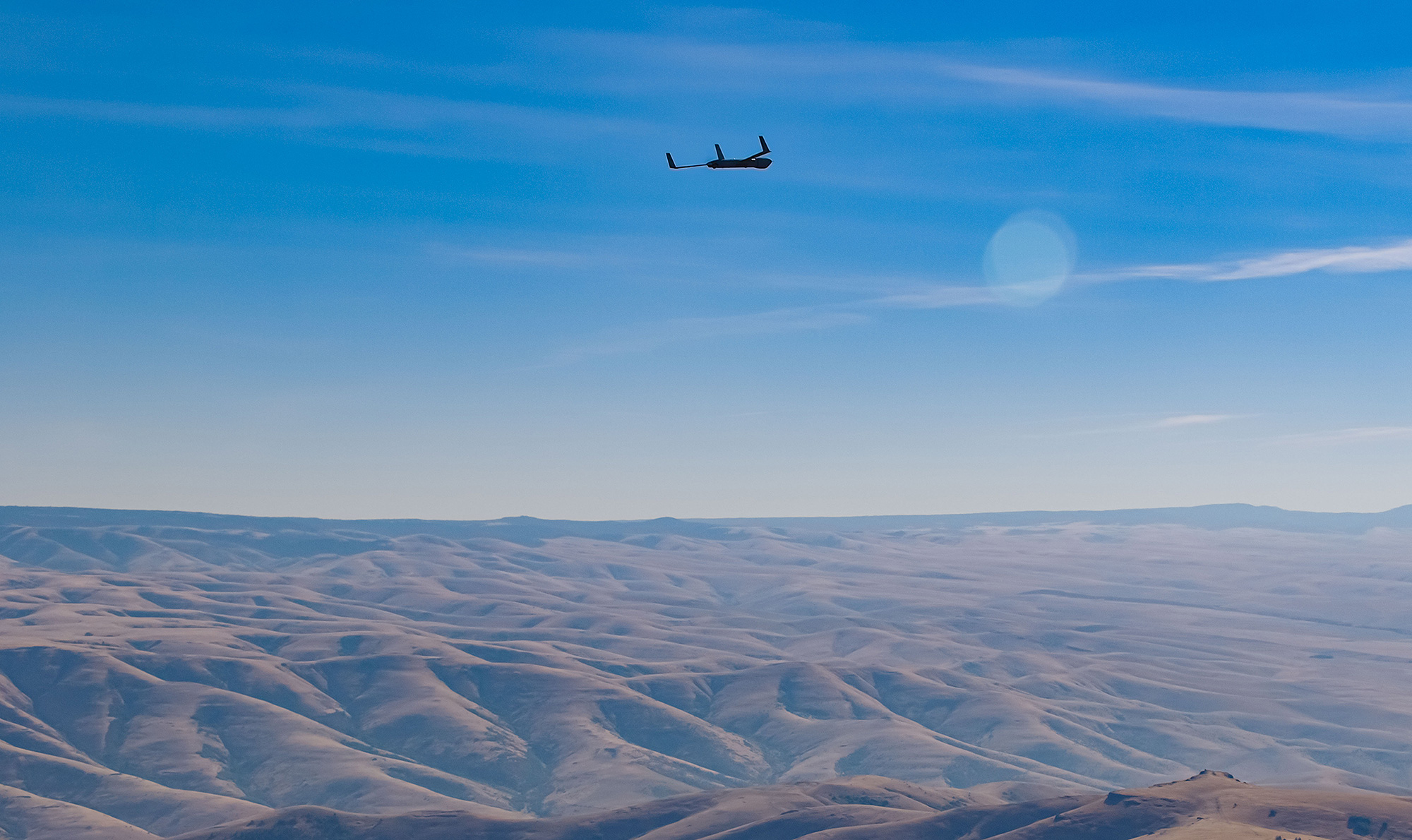

  • ScanEagle flying over field

Related Systems

Operate ScanEagle with these Insitu systems.

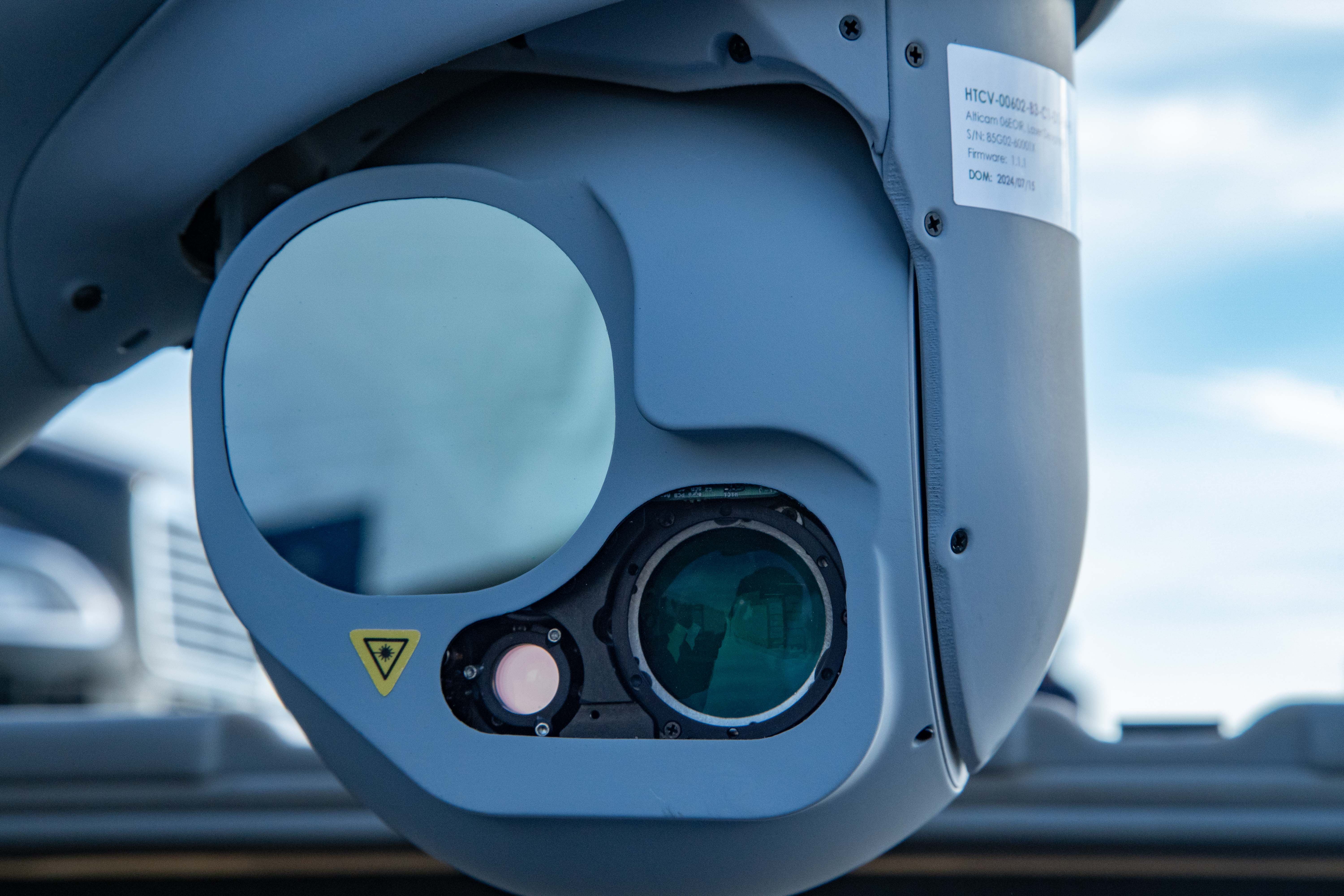

EO950

Multi-Imager, Multi-Feed turret with EO/IR telescope and zoom
Learn More

ViDAR

Search 13,000nmsq in 12 hours with the help of automated onboard detection
Learn More

Catalina

Increasing expeditionary capabilities with more payload options
Learn More

TacitView

TacitView delivers FMV media manipulation and management tools
Learn More
