The Integrator: Sustained Aerial Reconnaissance as Operational Added Value

Original Belgian Defence article here. Translated to English from Dutch by Google Translate.

The Integrator is a tactical unmanned aerial system deployed by the Jagers te Paard (Mounted Rifles) to enable sustained and reliable aerial reconnaissance. The system addresses a clear evolution within military operations: faster access to relevant information and the ability to utilize it immediately for on-the-ground decision-making.

The strength of the Integrator lies not only in the platform itself, but in the way it generates, processes, and disseminates information within an operational context.

Built for Sustained Presence

The Integrator belongs to a class of systems designed around persistence: remaining present over an area for extended periods to detect and analyze developments.

With an endurance of over 24 hours, the system can conduct continuous observations, both by day and by night.

Key Technical Specifications:

Operational altitude of up to approximately 6,000 meters
Flight endurance of 24 hours

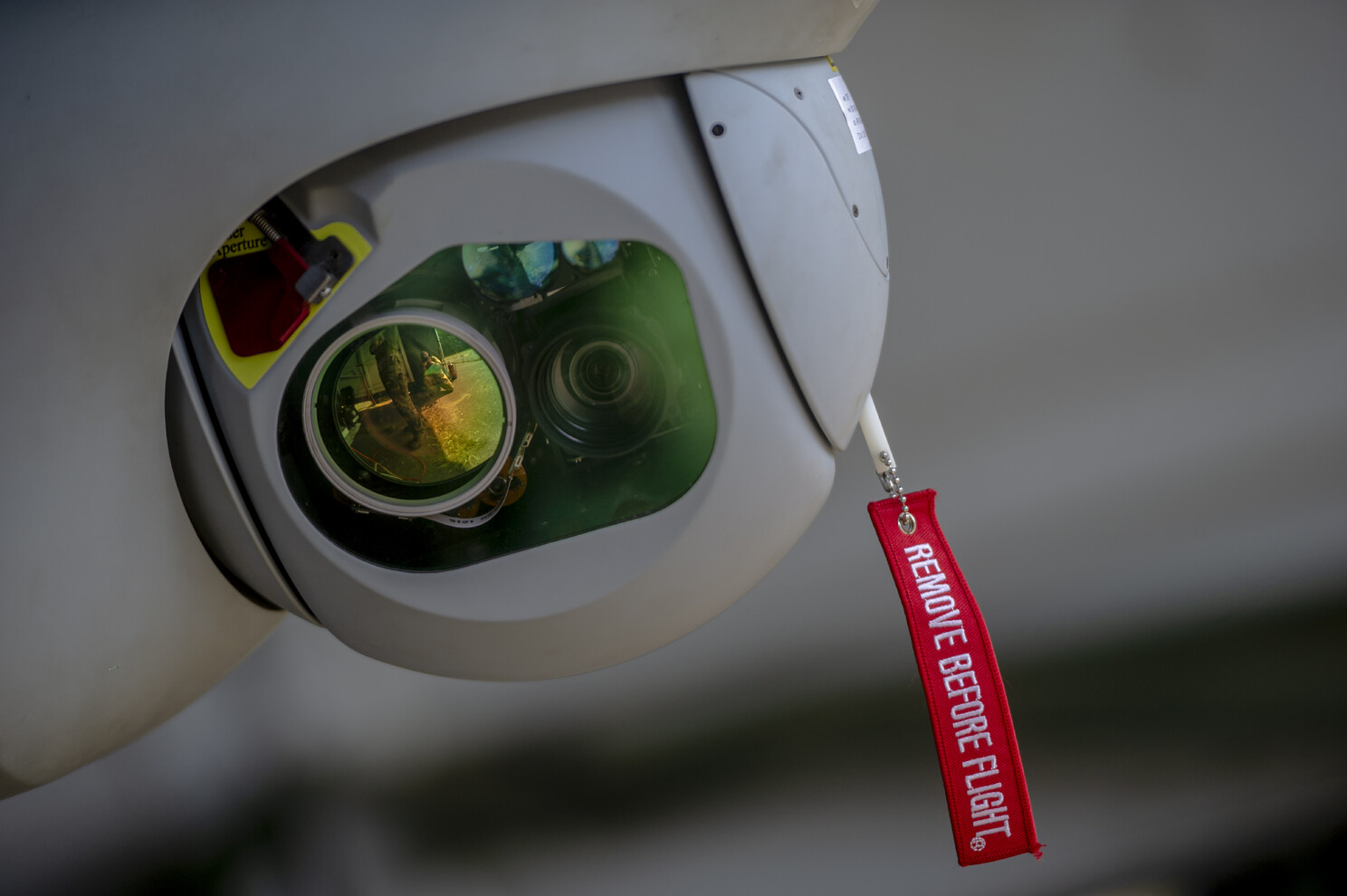

Sensor suite: electro-optical (day), infrared (night), and radar
Real-time data link with ground stations
Capability for automatic tracking and sensor cueing
Modules tailored to the specific mission

This combination makes it possible not only to collect imagery but also to actively track movements on the ground and interpret them more rapidly.

The information is transmitted in real time to command posts, where it can be immediately utilized in the planning and execution of operations.

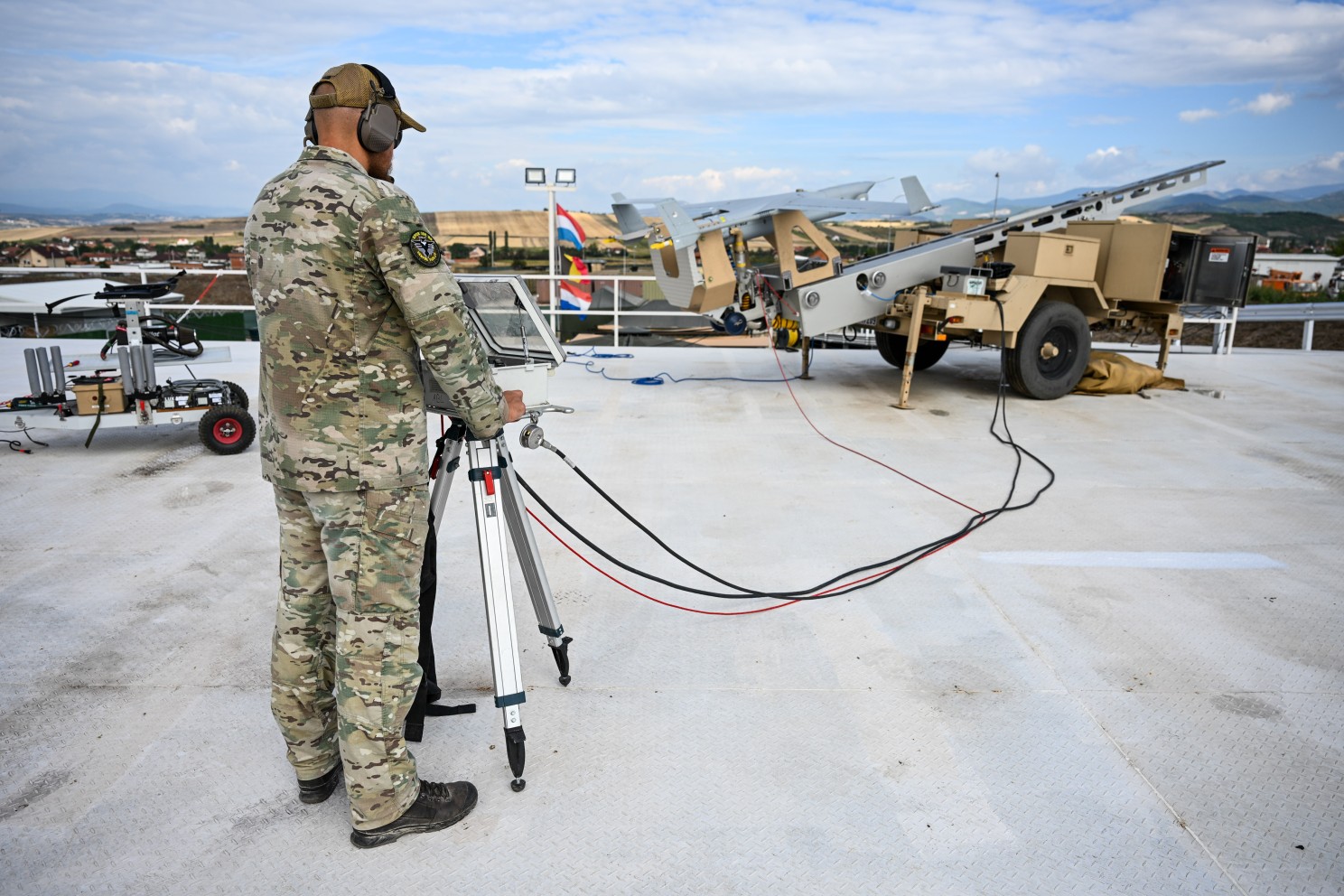

Deployment Without Conventional Aviation Infrastructure
A key design feature of the Integrator is its independence from traditional runways.

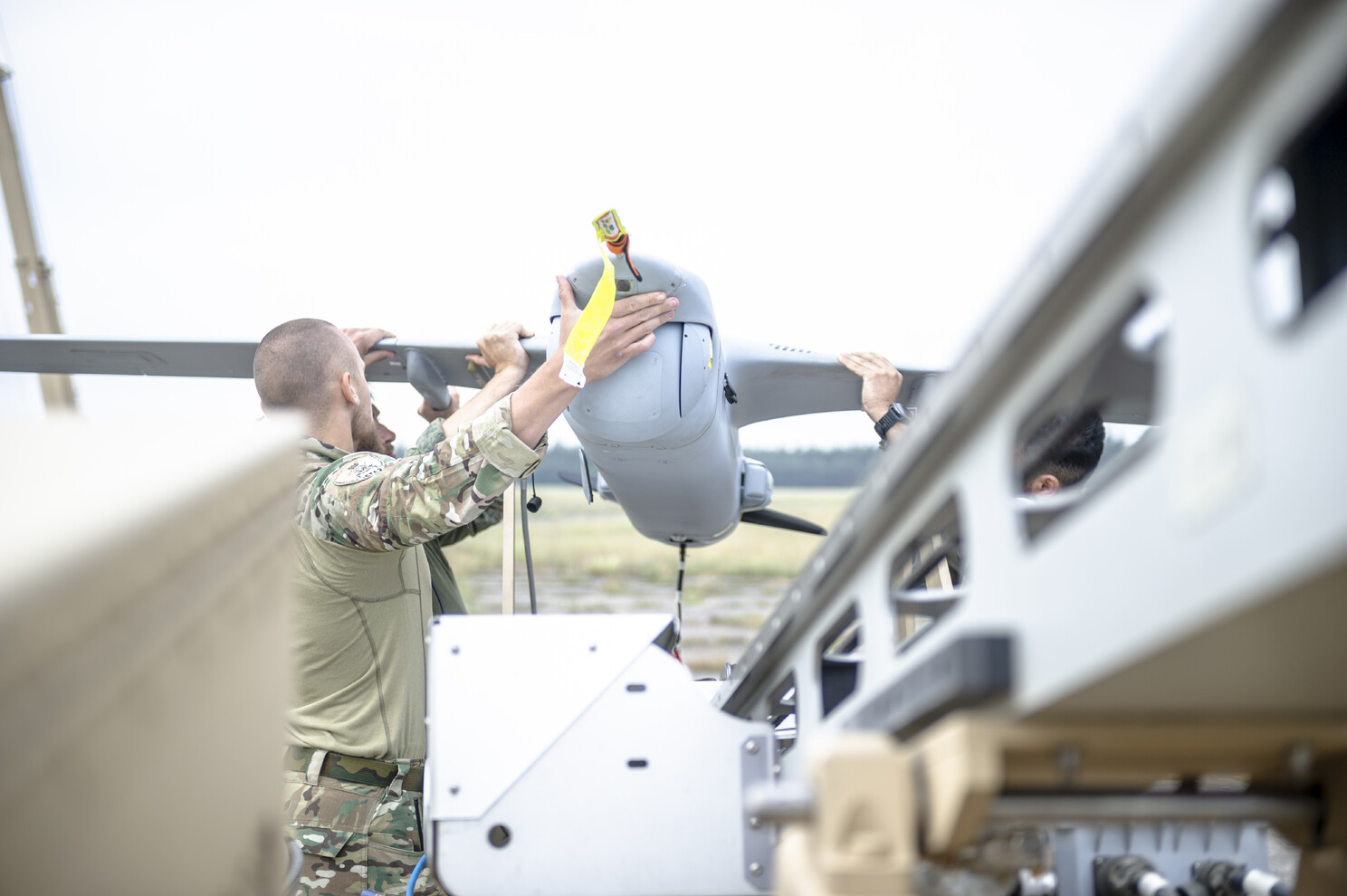

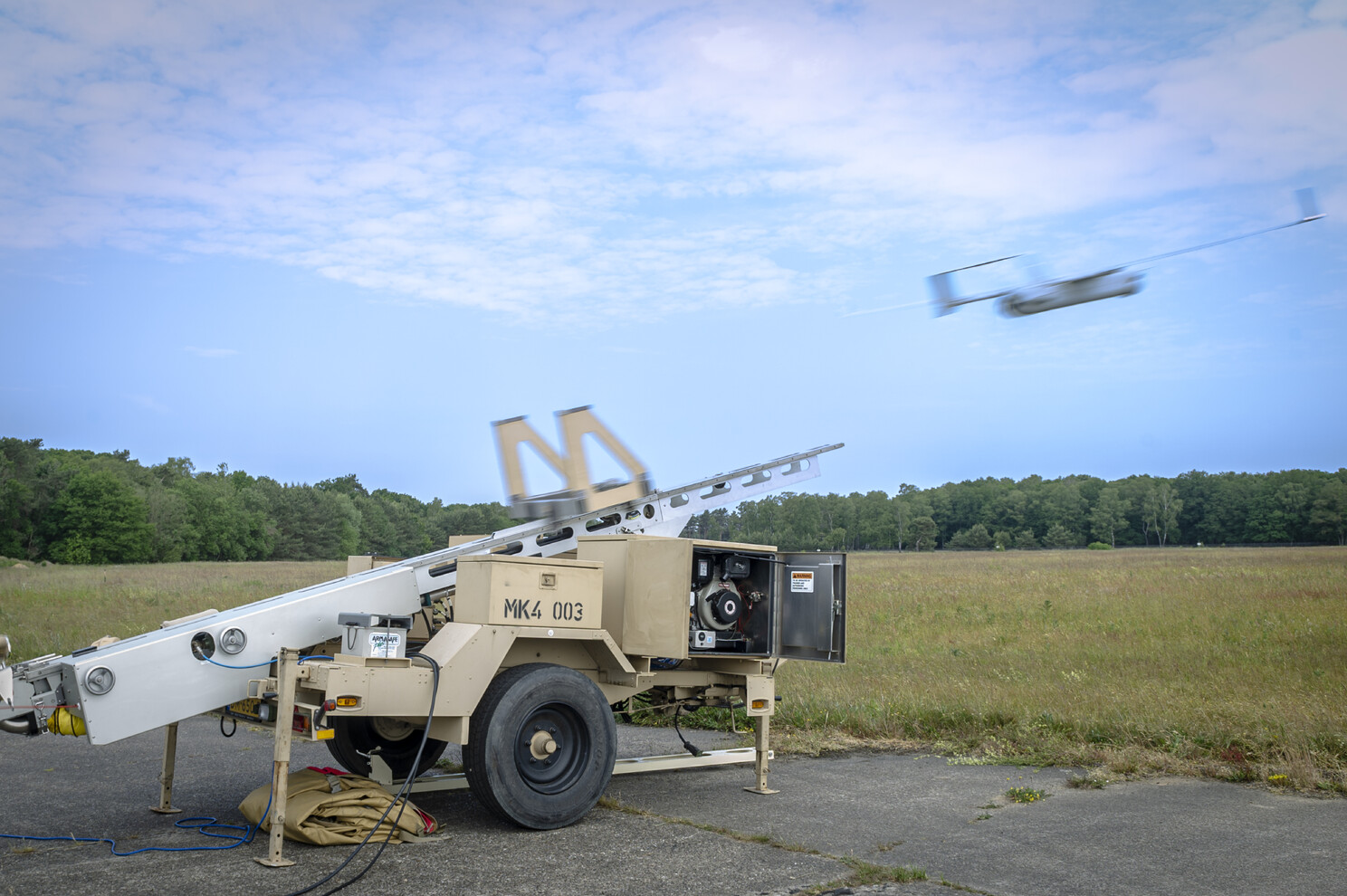

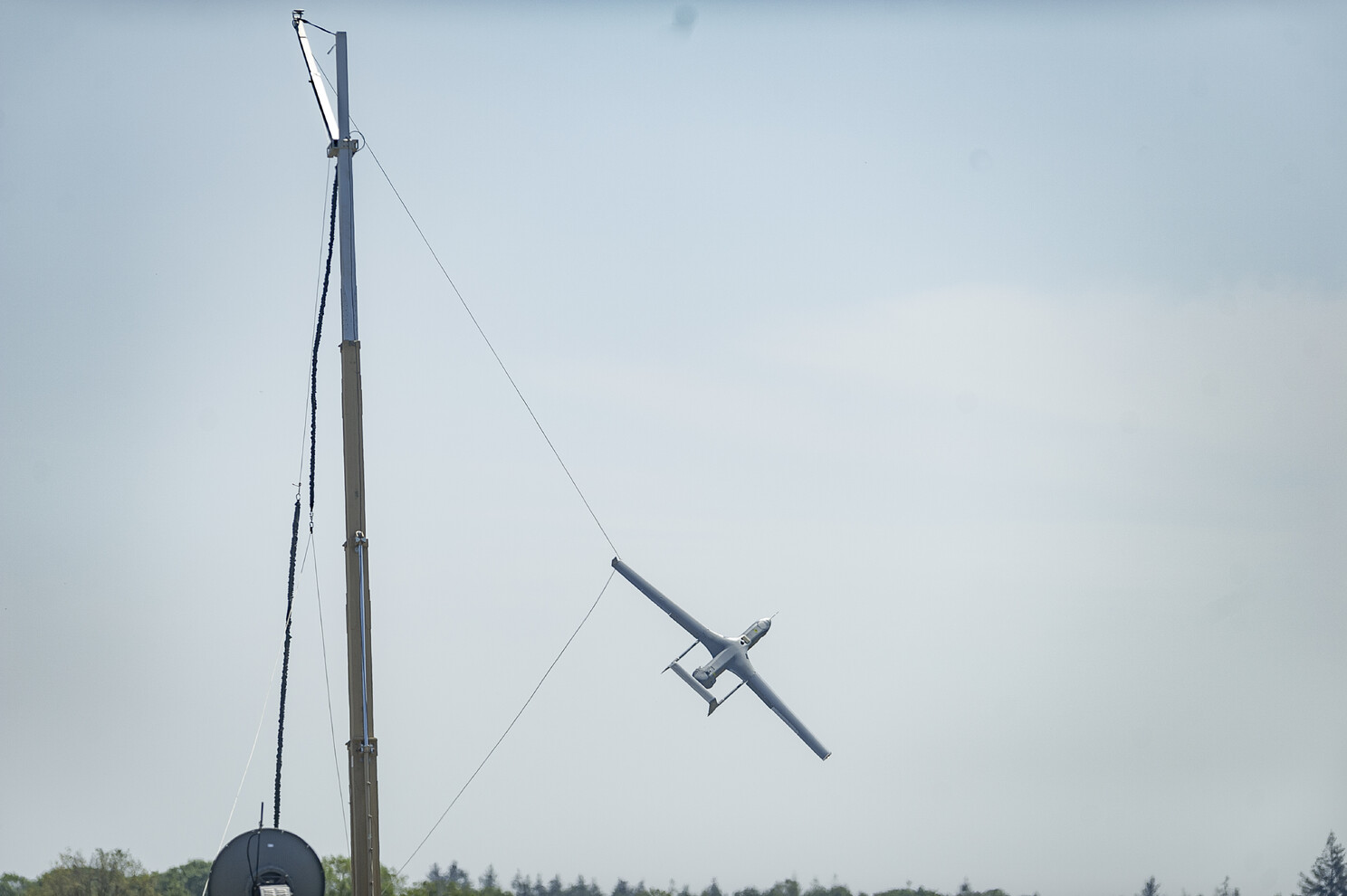

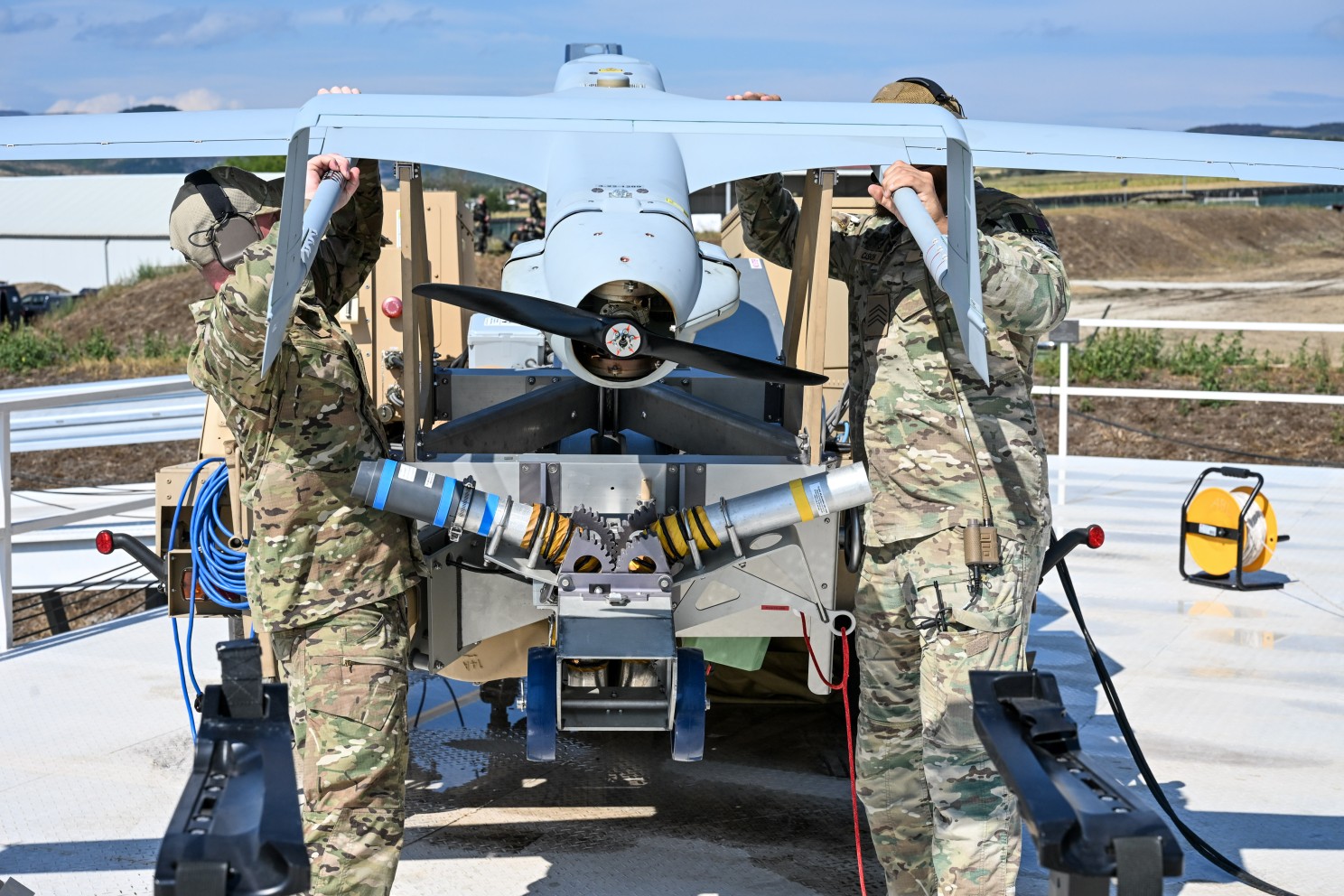

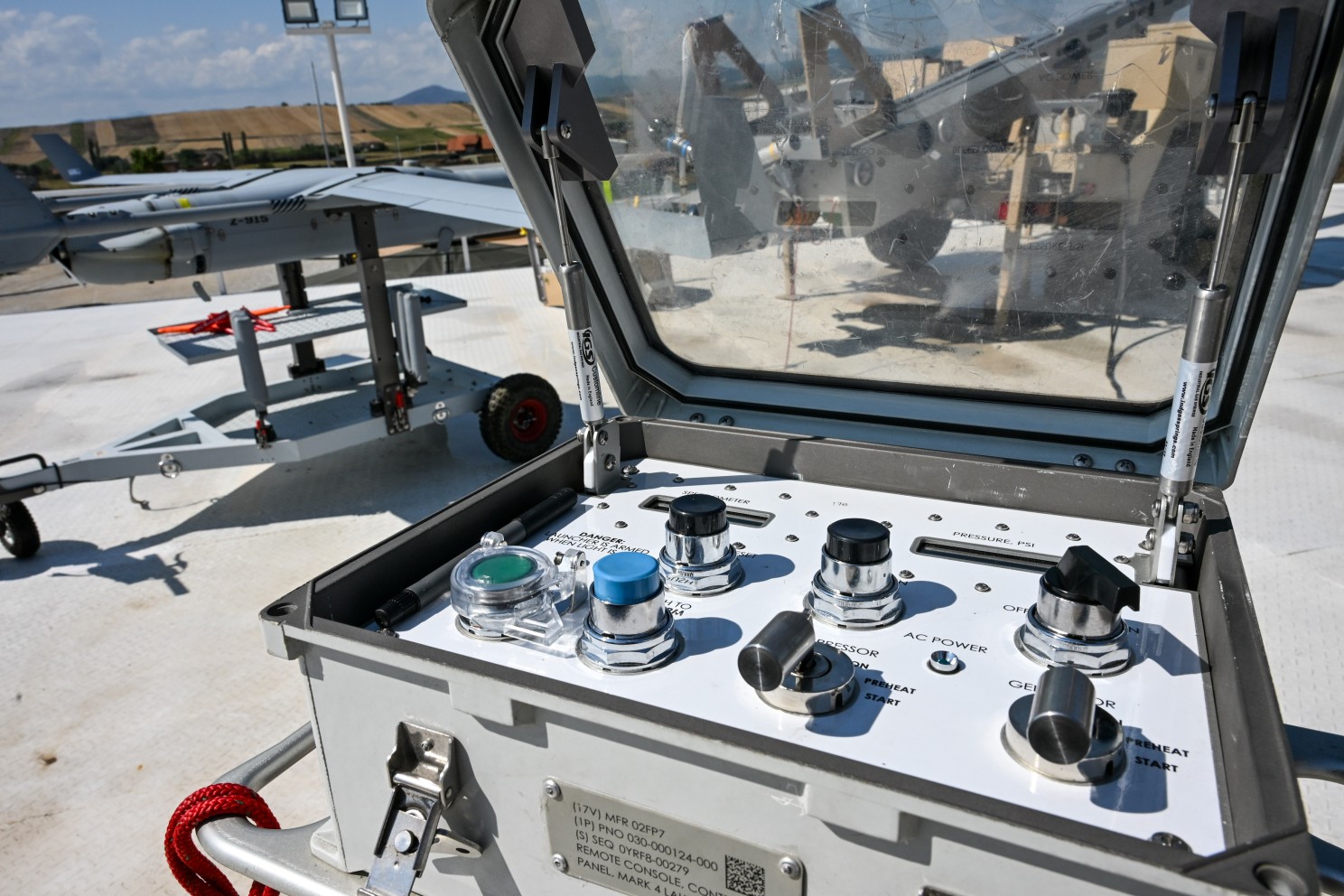

Launch is executed via a mechanical system that accelerates the aircraft to flight speed. For recovery, the system employs a controlled capture mechanism in which the aircraft grasps a vertical cable, thereby coming to a safe halt.

Consequently, the system can be deployed from small or temporary sites located close to the area of ​​operations. This reduces logistical requirements while simultaneously enhancing deployment flexibility and speed.

Operational Application within KFOR

Over the past year, the Integrator demonstrated its value during the Belgian contribution to NATO’s Kosovo Force (KFOR). KFOR is responsible for ensuring stability and security in Kosovo, with a strong emphasis on presence, monitoring, and support for local structures.

In this context, the Integrator supported multinational forces by observing specific zones and movements, providing support to patrols, and contributing to the development of a shared operational picture. By maintaining a sustained presence over a given area, the system was able not only to detect specific activities but also to reveal changes in behavior or patterns

This continuous stream of information enabled—and continues to enable—forces to take more targeted action and anticipate evolving situations more rapidly.

Collaboration as a Force Multiplier

The Integrator capability is the result of a collaborative effort between Belgium, the Netherlands, and Luxembourg. Since the project’s inception in 2018, the focus has been on joint training, shared procedures, and interoperability.

Today, this collaboration translates into a capability that can be readily deployed within a multinational context such as KFOR. It enhances not only operational efficiency but also coordination among the partner nations.

From Observation to Insight

Whereas traditional reconnaissance was often limited to the mere collection of imagery, the Integrator goes a step further. The system supports the entire process—from detection and tracking to interpretation. By enabling sensors to automatically respond to events on the ground and immediately share that information, a faster and more reliable picture of the situation is created. This reduces the time between observation and decision-making—a factor that can make a crucial difference in an operational context.
